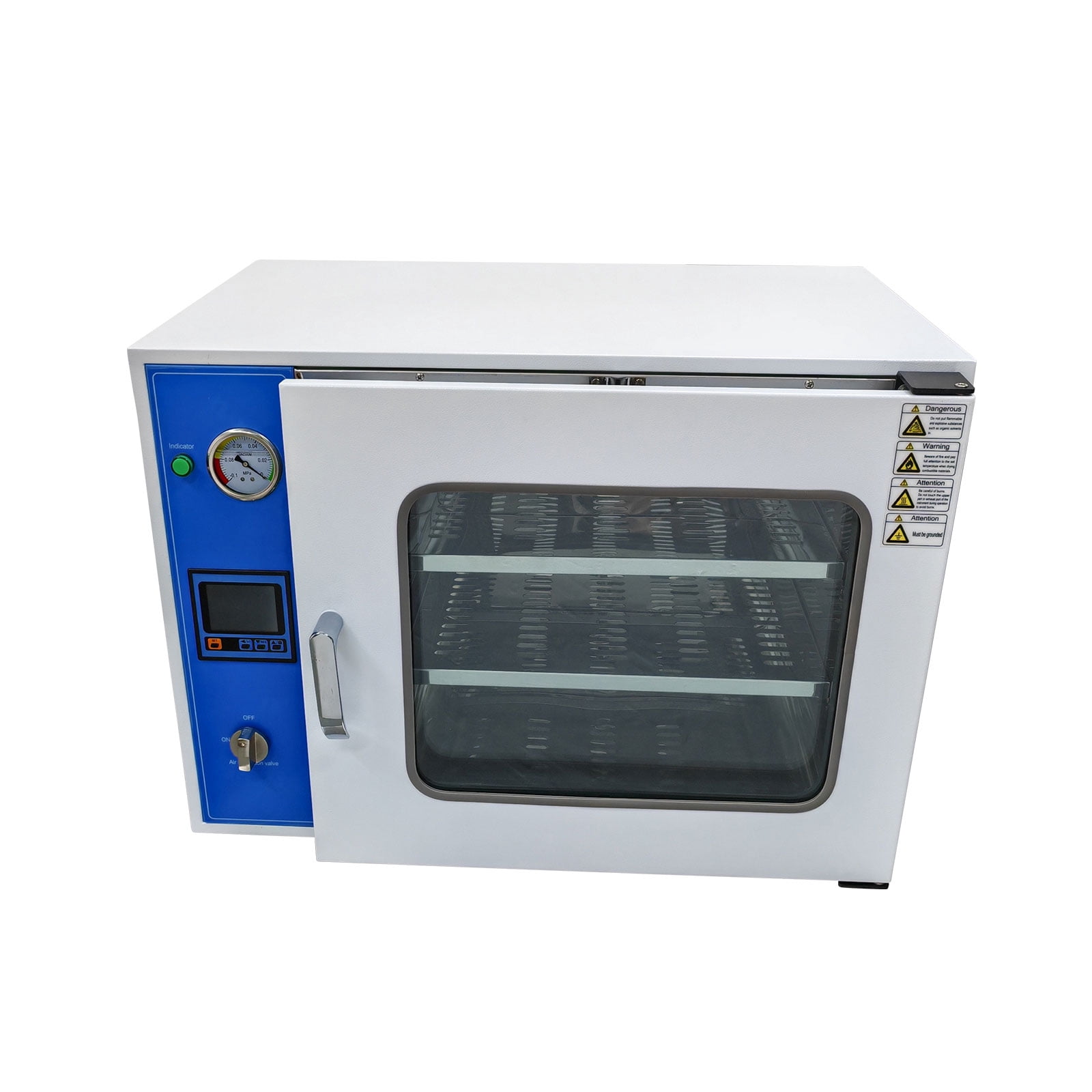

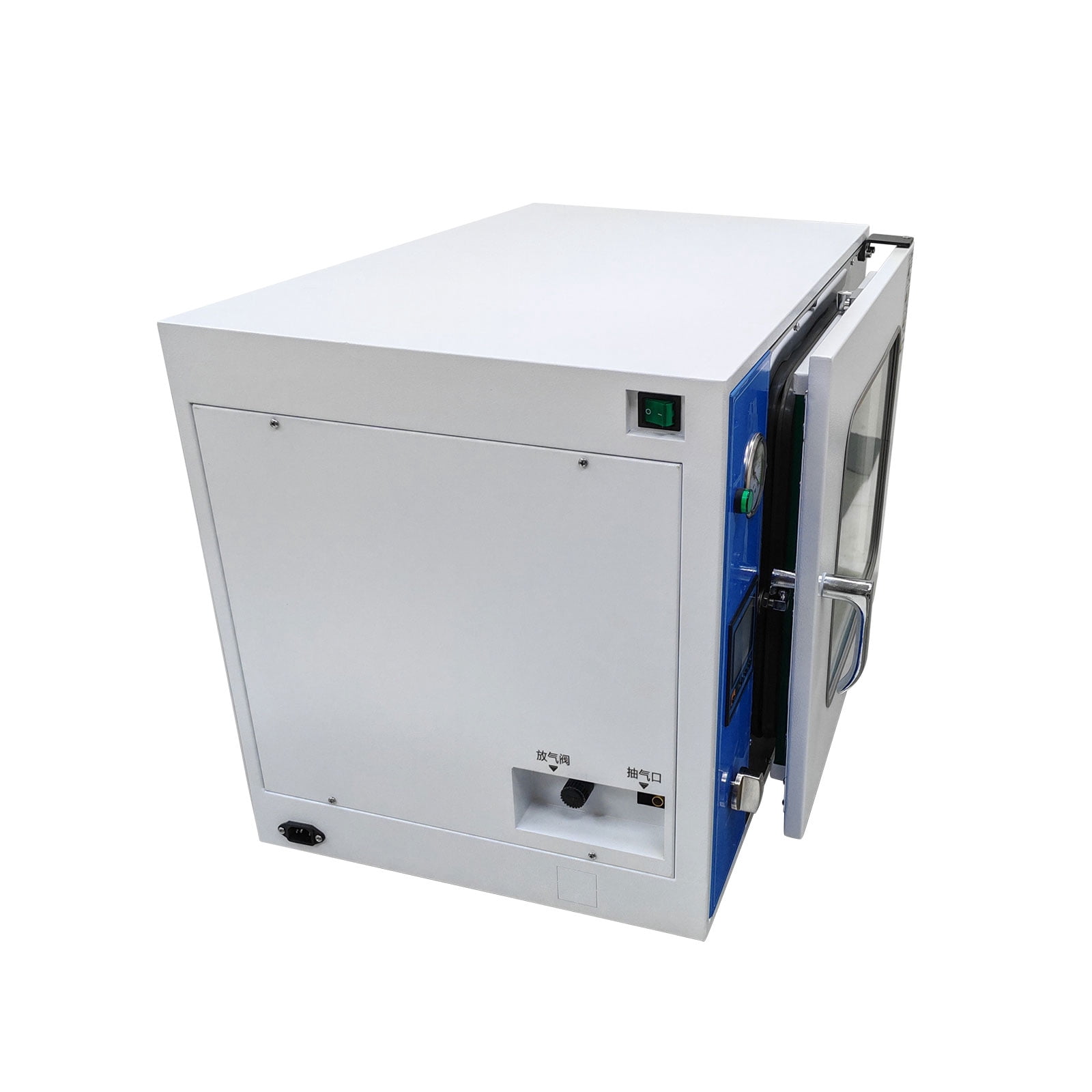

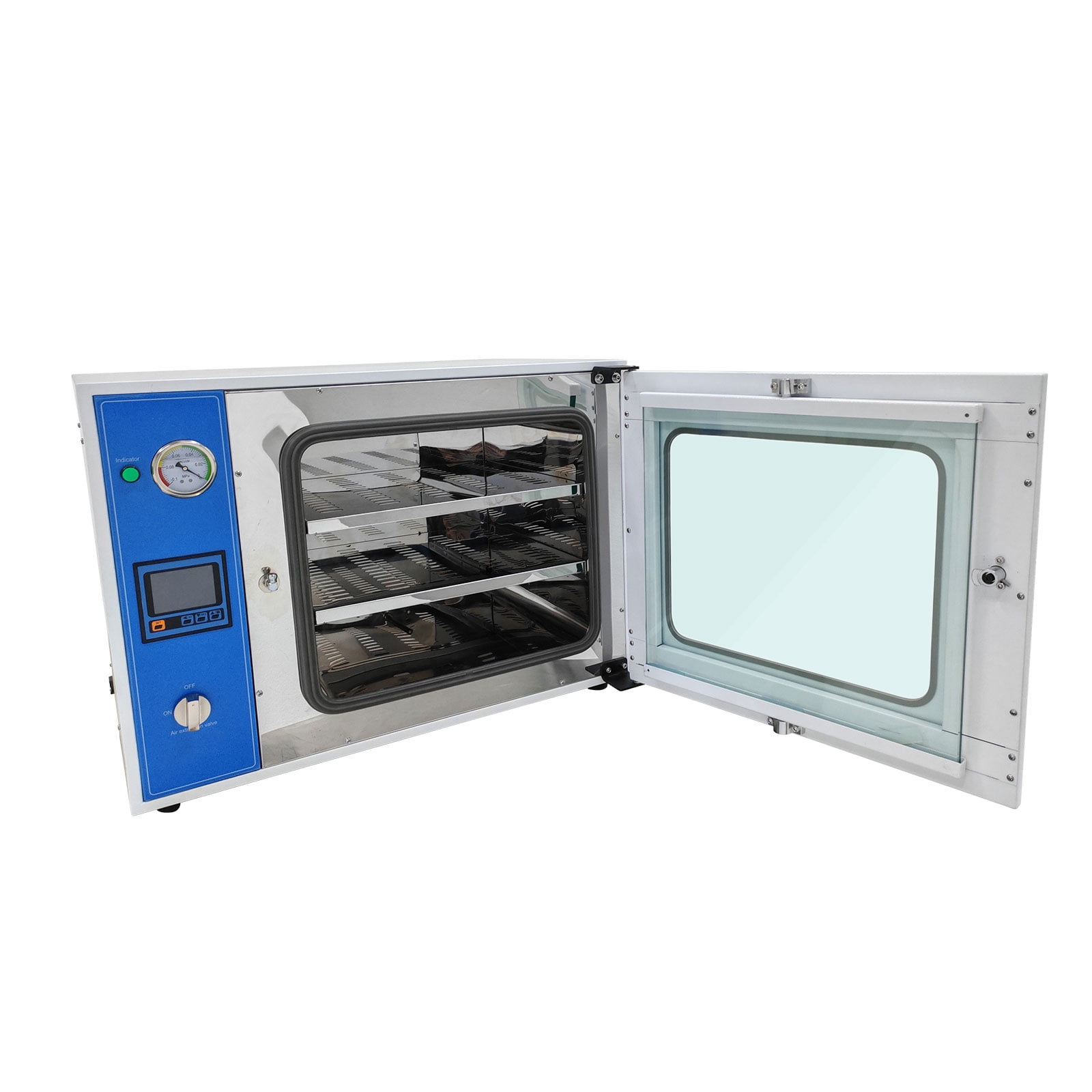

1.9 Cu Ft Digital Vacuum Drying Oven Lab Drying Equipment Digital Vacuum Oven with LCD Display

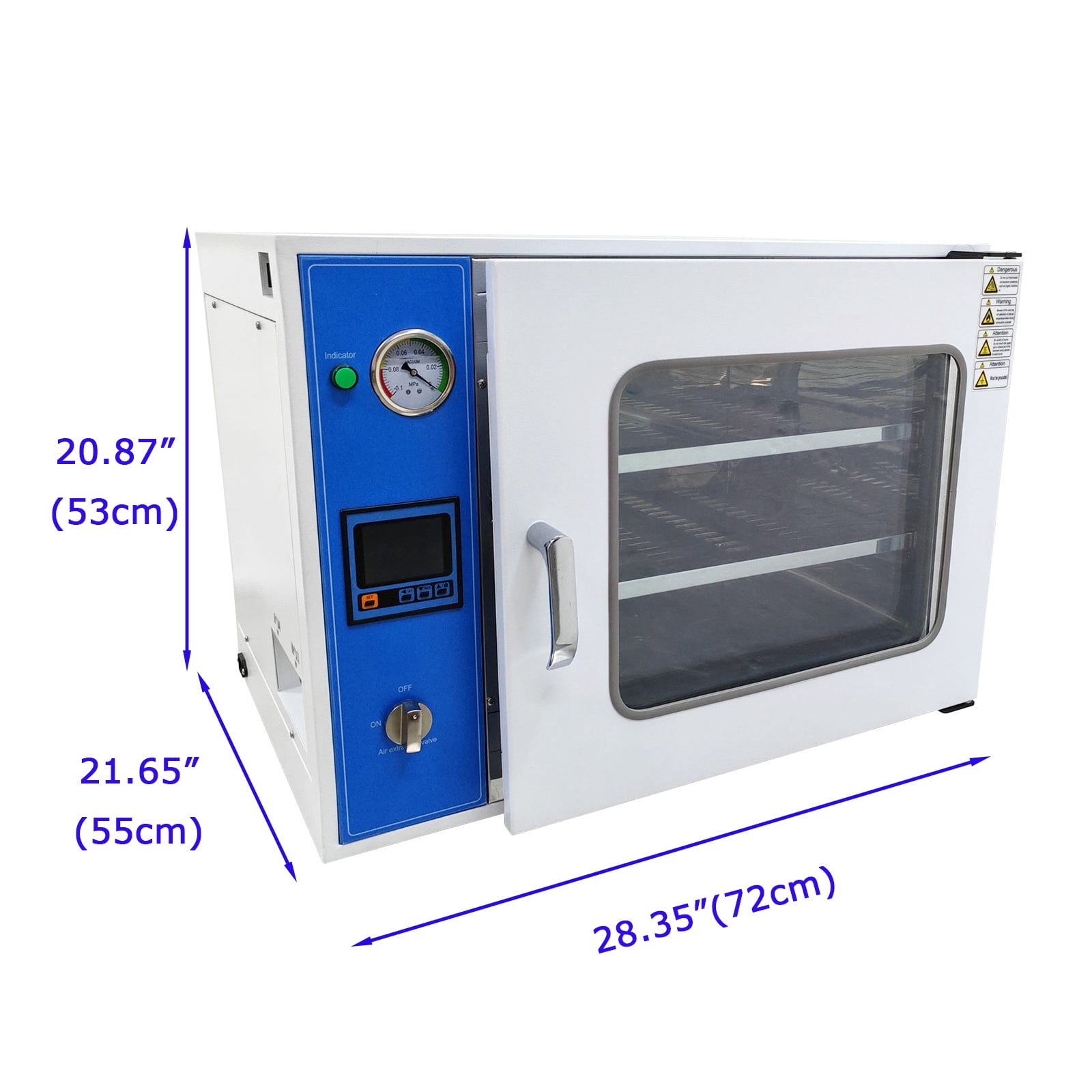

Introduction:<br> This device is used for drying and heating processes under vacuum conditions at laboratories in enterprises,schools and scientific institutions.Heating and drying under vacuum condition shows the following advantages:<br> a. Drying temperature can be lowered. (Low pressure and low temperature).<br> b. Oxidation of some articles after heating can be avoided with no damages done by dust.<br> c. Slaughter of biological cells caused by heated air can be avoided.<br><br> Specifications<br> Voltage: 110V<br> Power: 1400W<br> Temperature range: 50~200℃<br> Temperature fluctuation: ±1℃<br> Vacuum degree: ＜133Pa<br> Dwelling timer range: 1-9999 minutes<br> Studio Size: 410*370*345mm(16.14"*14.57"*13.58")<br> Studio Materials: 304 stainless steel<br> The quantity of the shelves: 2<br> Pumping rate of matching vacuum pump: 2L<br><br> Application<br> Vacuum drying boxes are widely used in biochemistry, chemical and pharmaceutical, medical and health,agricultural scientific research, environmental protection and other research and application fields, for powder drying, baking and disinfection and sterilization of all kinds of glass containers. It is especially suitable for rapid and efficient drying of heat-sensitive, easily decomposed, easily oxidized substances and complex components.<br><br> Precautions<br> 1. The vacuum drying oven must be effectively grounded to ensure safety.<br> 2. When the vacuum drying box does not need to be connected for air extraction, the vacuum valve should be closed first, then the power supply of the vacuum pump should be turned off, and the vacuum pump air ballast valve should be opened at the same time, otherwise the pump oil will pour back into the box.<br> 3. When removing the processed item, if it is flammable, it must wait for the temperature to cool below the ignition point before being released into the air to avoid combustion.<br> 4. The vacuum box is not equipped with explosion-proof devices and explosive materials must not be placed for drying.<br> 5. If conditions permit, a filter should be installed between the vacuum box and the vacuum pump to prevent humid gases from entering the vacuum pump.<br> 6. There is a small hole on the top of the silicone oil gauge to ensure that the pointer points to 0. If it is inverted during transportation, there may be slight oil leakage, which is a normal situation.After drying, it can be used normally.<br> 7. After the work is completed, be sure to take proper protective measures to prevent burns.<br><br> Item Number: 160646<br> 1.9 Cu Ft Digital Vacuum Drying Oven

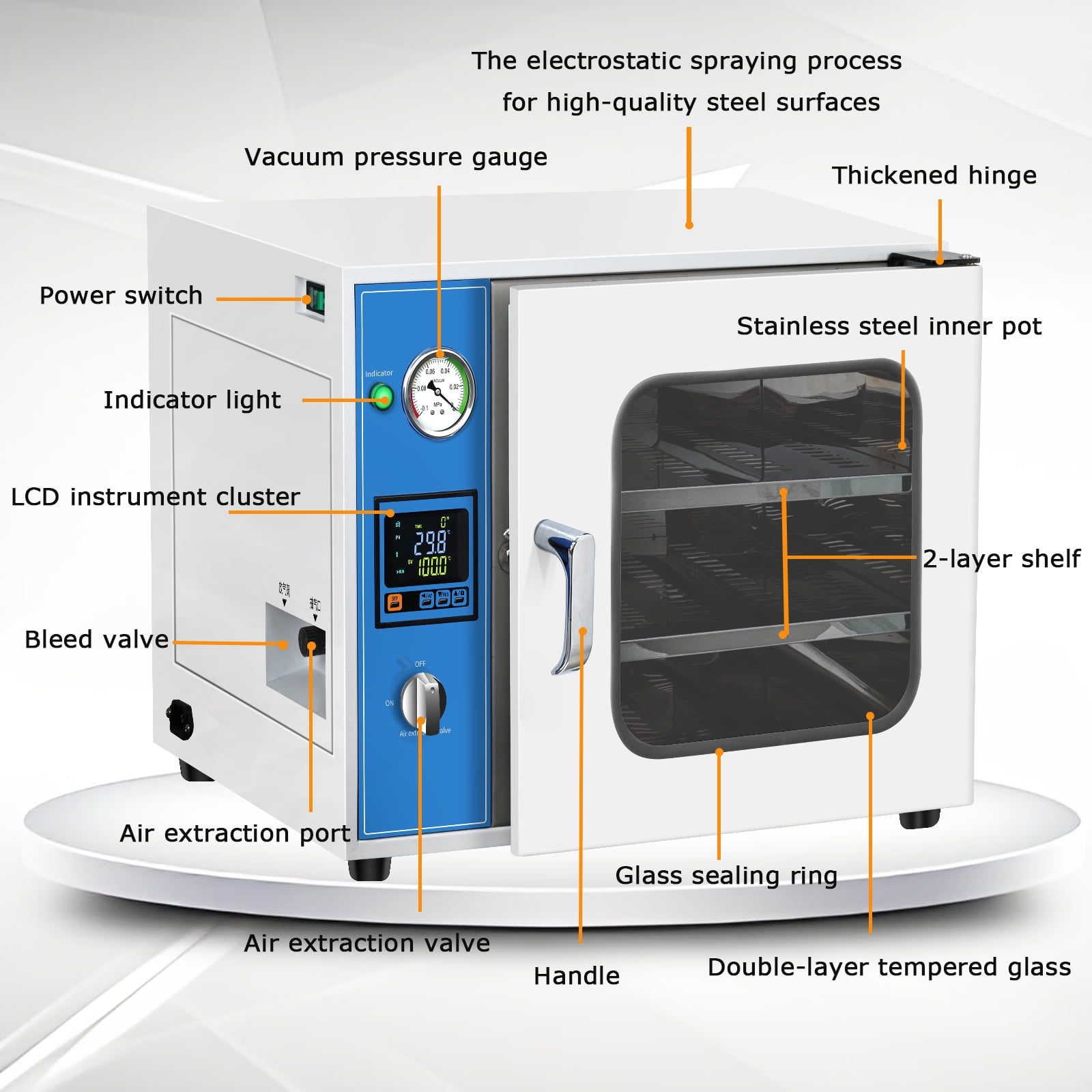

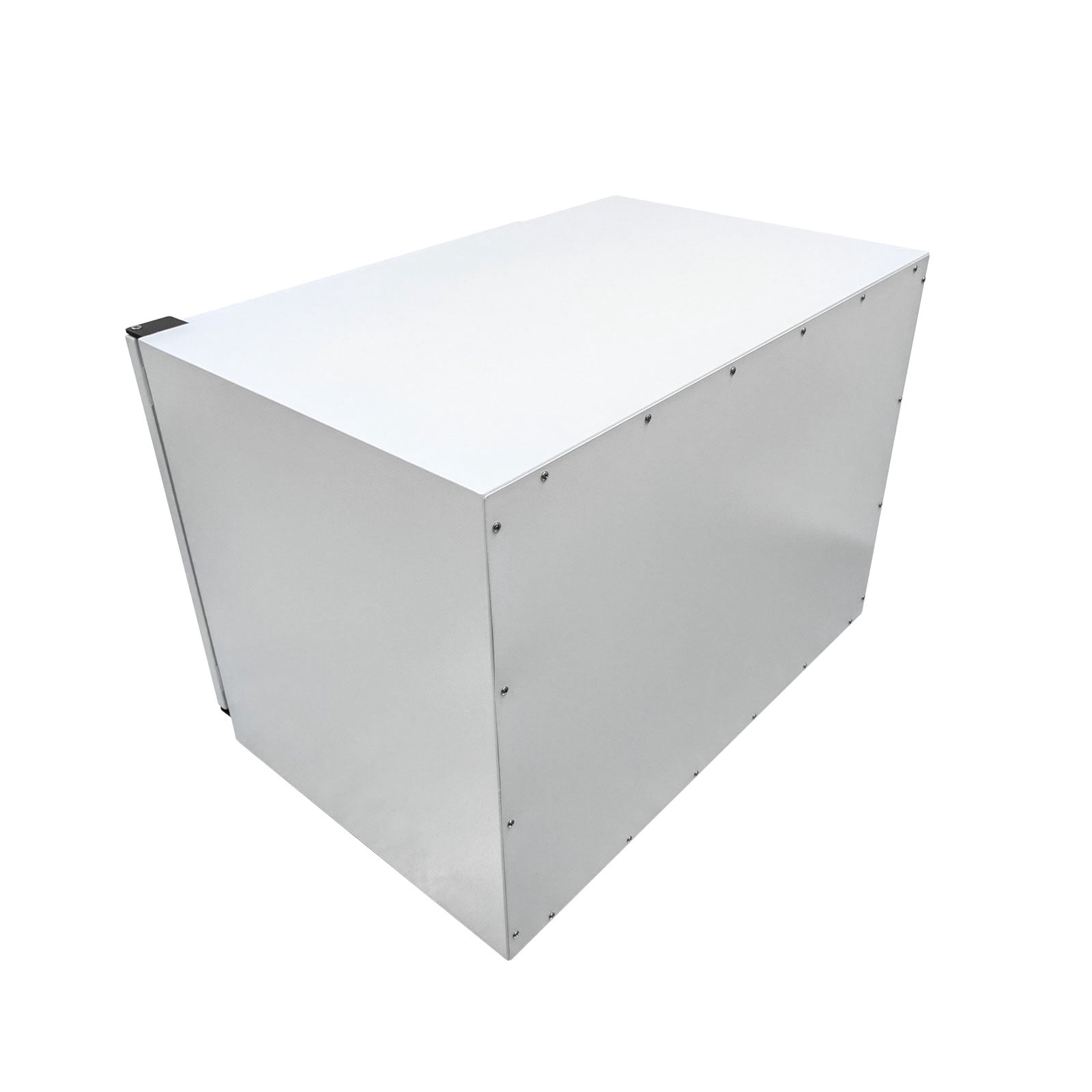

• The housing is made of high-quality sheets with a plastic-jet surface. The chamber is made of mirror-polished 304 stainless steel boards and ease of maintenance.
• LCD backlight display,Intelligent timing overtemperature alarm ,Intelligent temperature correction.

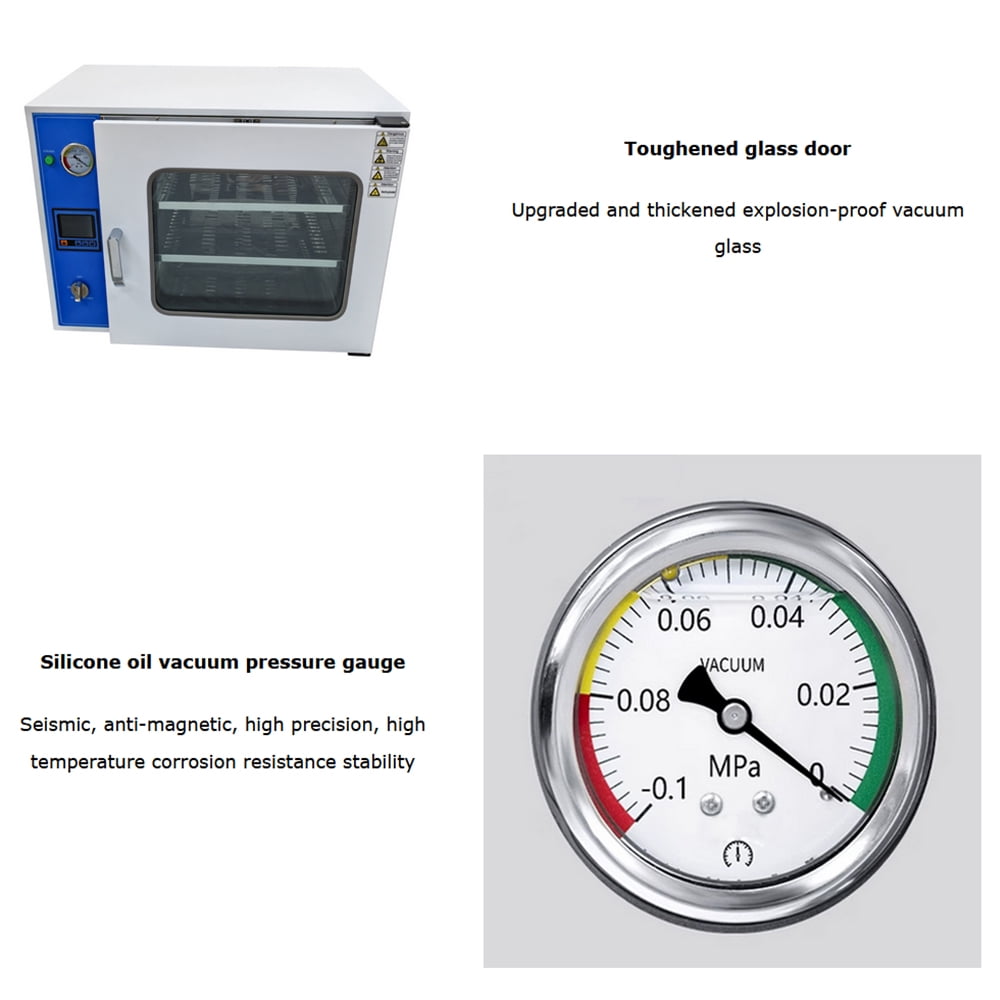

• Upgraded and thickened explosion-proof vacuum glass, easy to observe.

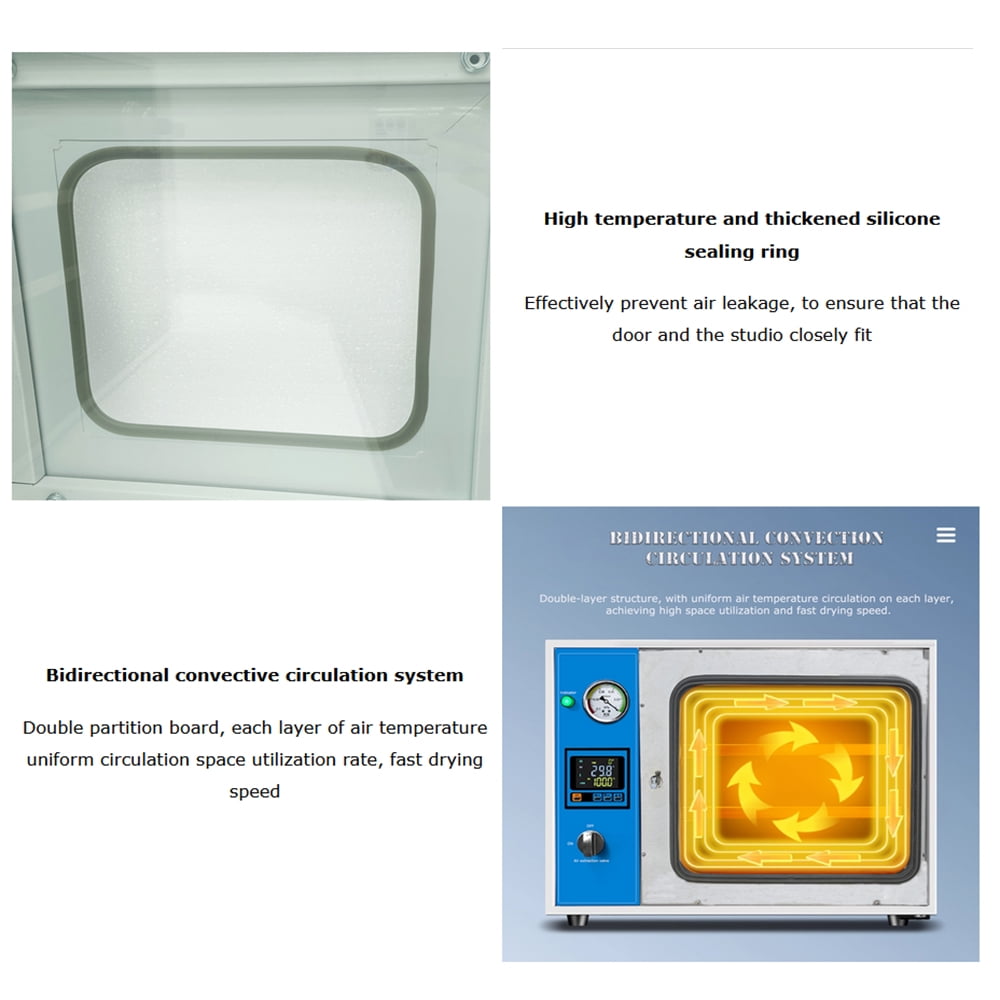

• Double partition board, each layer of air temperature uniform circulation space utilization rate, fast drying speed.
• This device is used for drying of experimental glass instruments and sol-gel degassing, etc,widely used in drying and heating processes under vacuum conditions at laboratories in enterprises, schools and scientific institutions.
